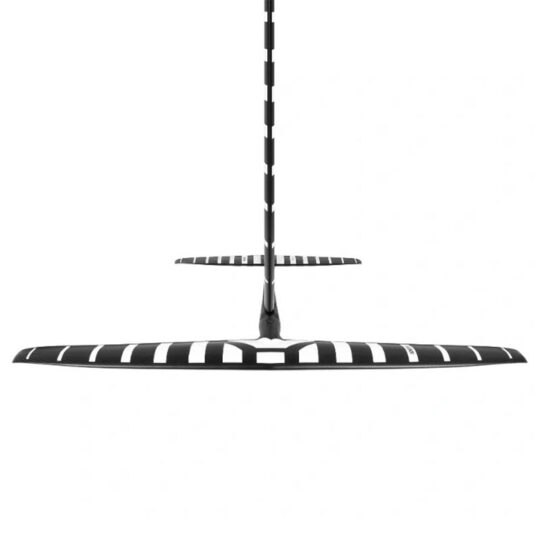

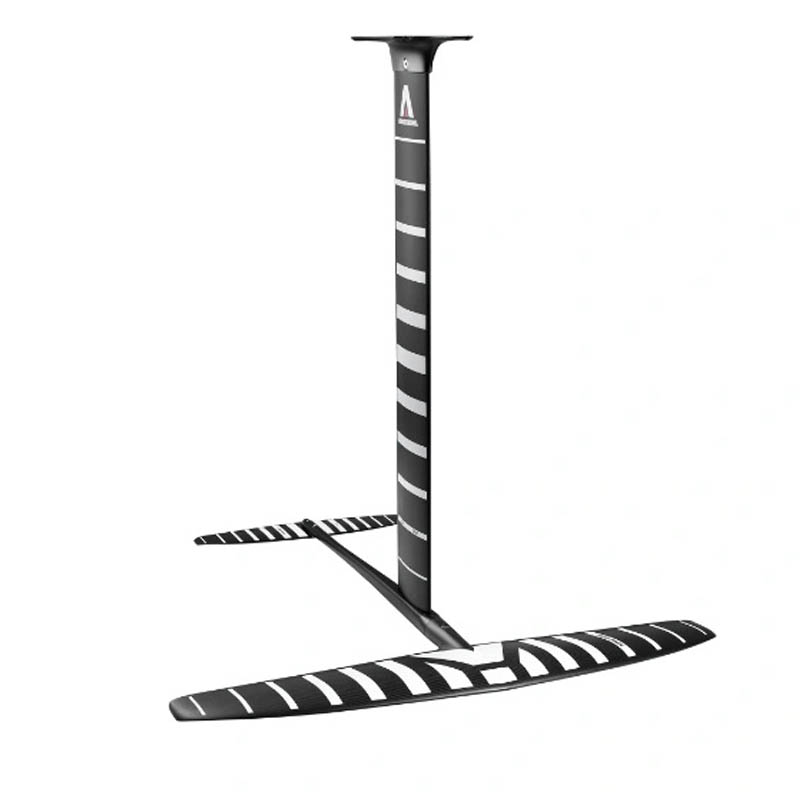

Armstrong Alloy S1 Foil Kit

Details:

Front/Stabiliser Foils

• An ultra easy platform for first time flyers to learn any foiling discipline. Excellent low speed lift, stability and recovery from ventilation.
• Leading and trailing edge sweep for stability and a narrower span to minimise breaching.
• Downturned wing tips increase rider safety and improve the efficiency of water flow.
• Proprietary Armstrong A+ System foil connection design offers industry-leading stiffness, durability and modularity.
• The S1 300 stabiliser was designed alongside the S1 foils to provide riders with the best learning platform possible.

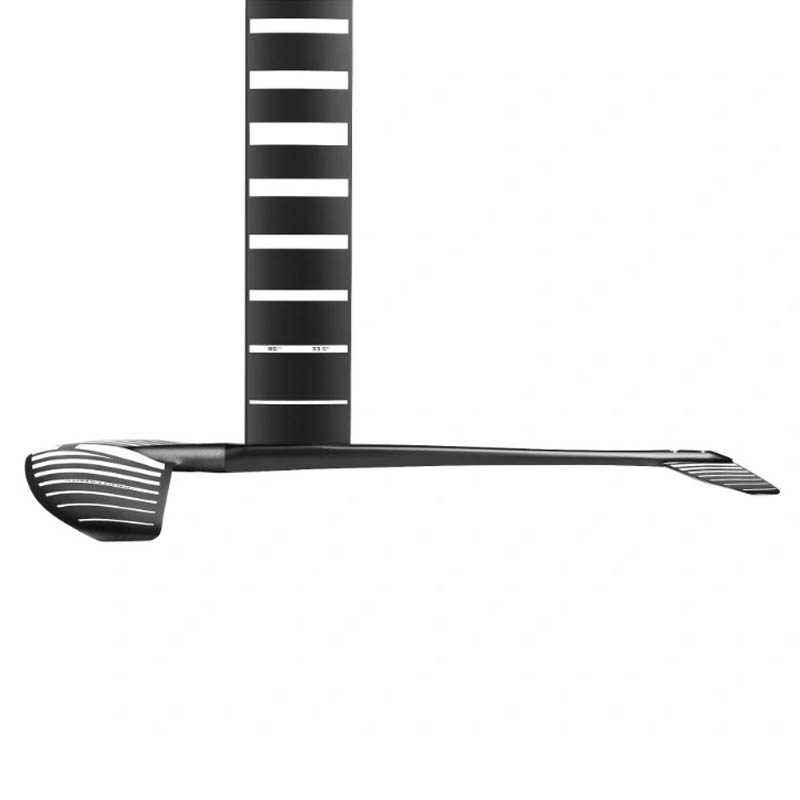

Mast/Fuselage

• Hexagonal fuselage shape is inherently strong, stiff and modular for an easy front foil swap.
• The mast section is 17.5mm thick; efficient through the water, yet strong to withstand the loads of advanced riding.
• Aircraft-grade 6061 and 7075 alloys for excellent strength to weight ratio.

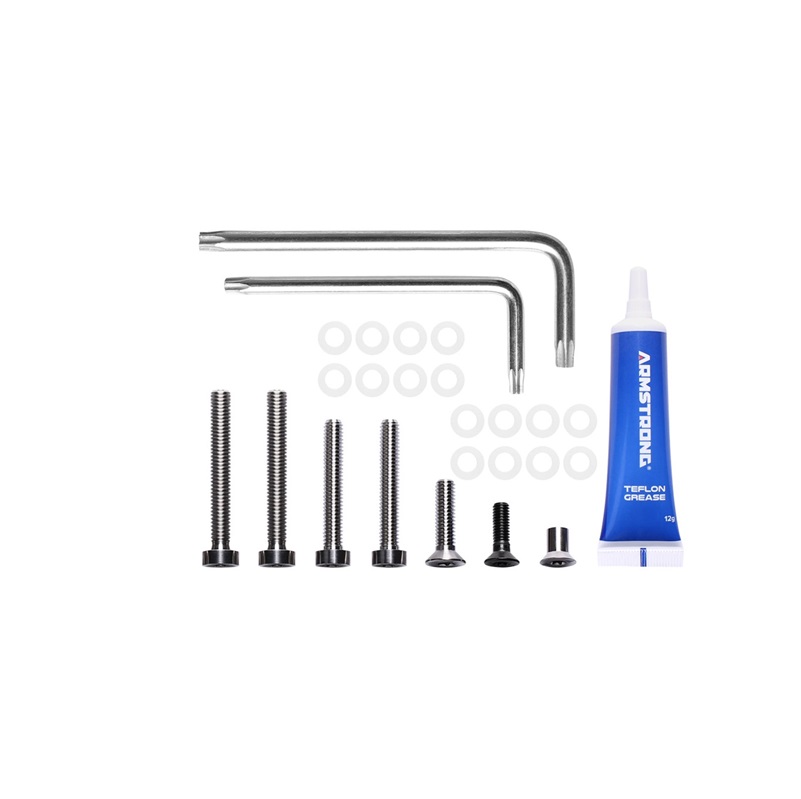

• Titanium and stainless hardware save having to disassemble frequently so it’s easy to use and maintain with excellent corrosion resistance. Screws are custom-made M7 and M8 x 1.25.

Foil Kit Tech Specs

Choice of Front Foils:

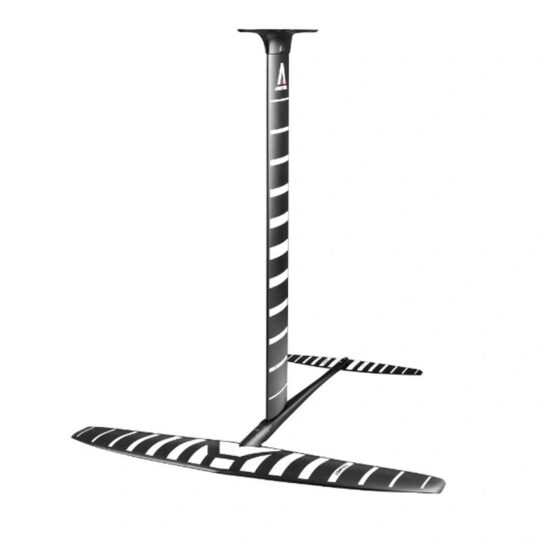

• 1250: Span 848mm, AR 5.7

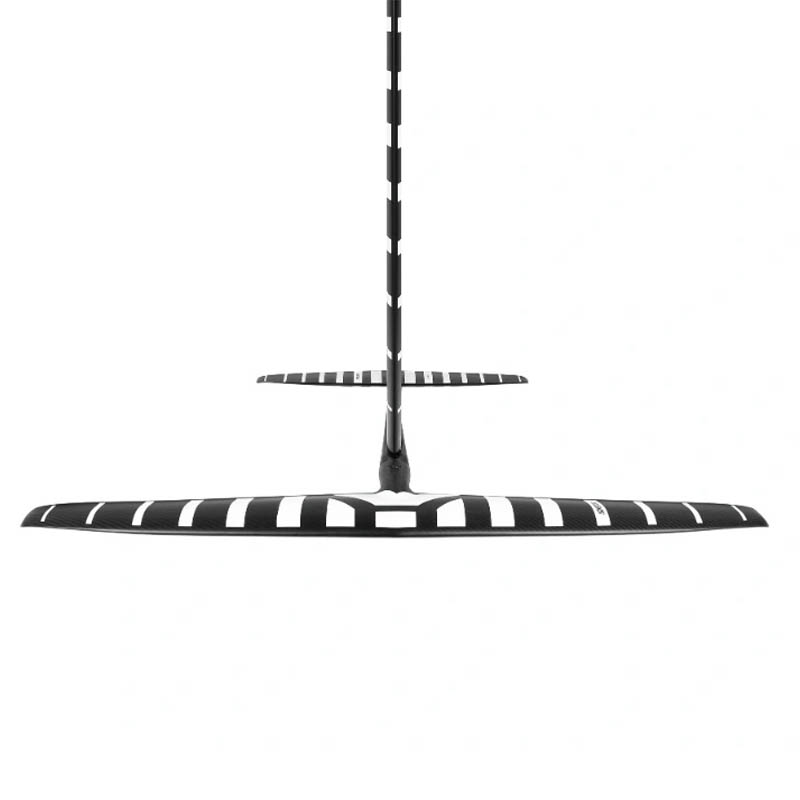

• 1550: Span 905mm, AR 5.3

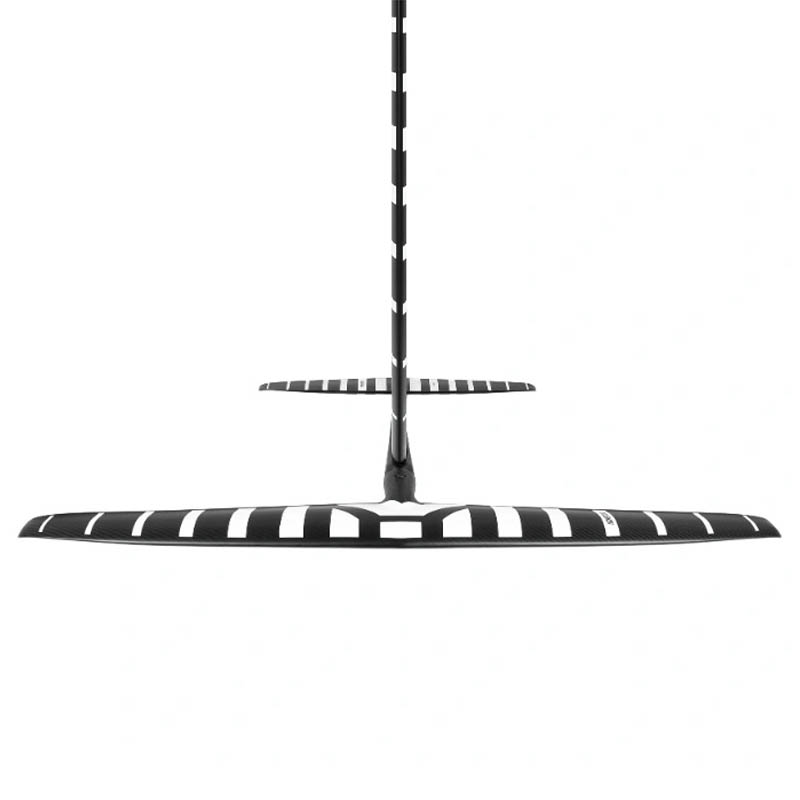

• 1850: Span 965mm, AR 5.0

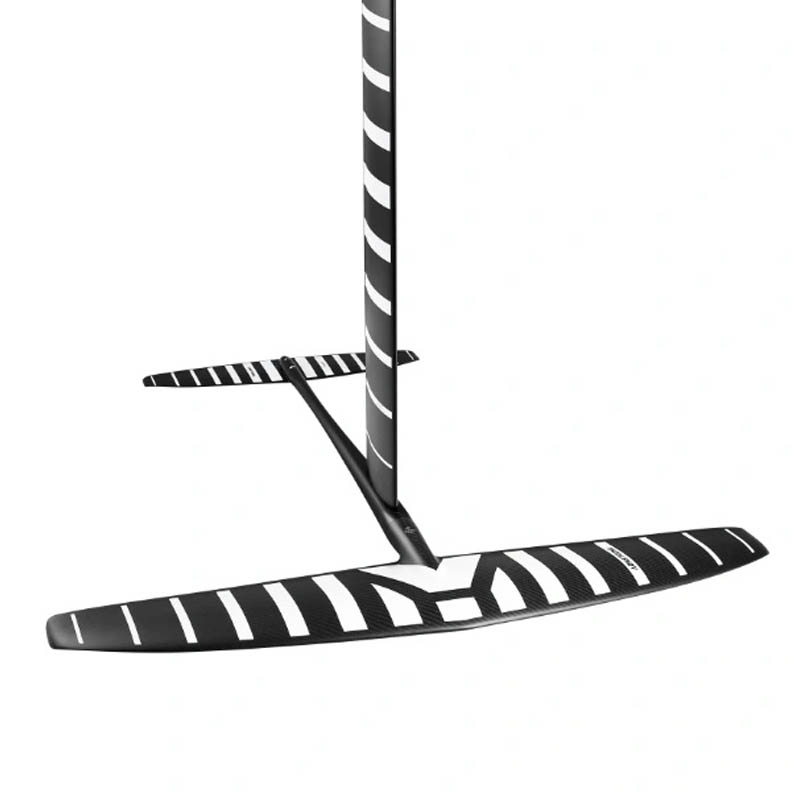

• 2450: Span 1054mm, AR 4.8

Mast/Fuselage:

• 75cm fuselage
• 72cm mast

Additional items:

• Mast top plate
• Bottom bracket
• Bag
